NZ175 Sliding Window

NZ185 Sliding Window

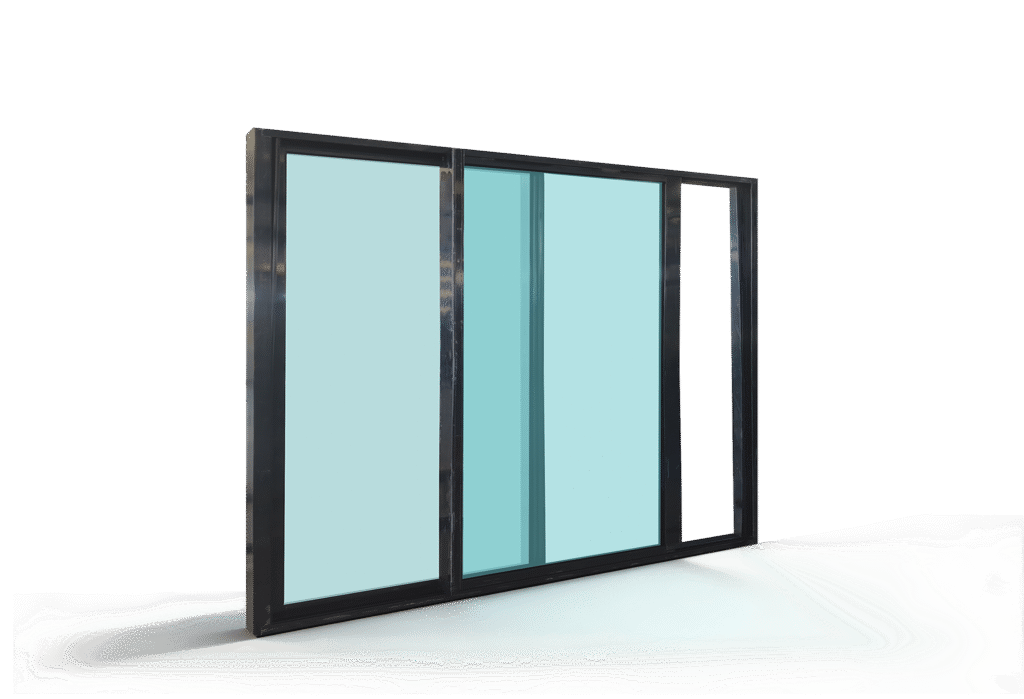

The Aluminium Sliding Window from M&C Windows & Doors offers a perfect balance of style, ventilation, and space efficiency — making it a popular choice for modern New Zealand homes and commercial projects. Its horizontal sliding design ensures easy operation and allows for unobstructed views with maximum airflow.
Glazing rebate depth：31mm
Frame visible surface：47mm
Glass specifications：
5mm+18Ar+5mm
6mm+18Ar+6mm
8mm+12Ar+8mm
Glass Configuration：
Clear
Fluted Glass
Custom Coating Colors
Obscured Glass
Single Panel Silver Low-E
Double Silver Low-E
Ultra Clear
Single Panel Bule Low-E
Hardware:
HOPO
Standard Color
Pearl White
2721114G
Monument
2729066M
Black Mall
27219320
Other colors
can be customized
Standard Equipment
Optional Equipment
MAXIMUM PERFORMANCE

Water Tightness :
300Pa

Ultimate Pressure :
Positive – 2000Pa
Negative – 2000Pa

Air Tightness :
Sealed
Positive – 75Pa – 9.38Ls-1
Negative – 75Pa – 10.23Ls-1
Overall Area: 6.0227m²
