MC100 Hinged Door

MC100 Hinged Door

Elegant Design · Durable Performance · Perfect for Modern Spaces
Our Aluminium Hinged Door combines timeless style with superior strength and functionality. Crafted from high-quality aluminium profiles, it offers excellent durability, weather resistance, and smooth operation for both residential and commercial applications.

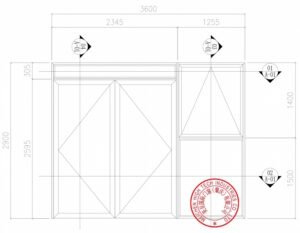

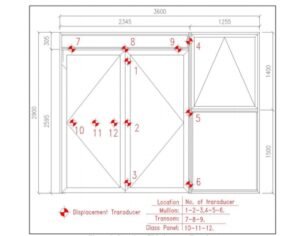

Test Result Summary
Glazing rebate depth：39mm
Frame visible surface：35mm
Glass specifications：
5mm+18Ar+5mm
6mm+18Ar+6mm
8mm+12Ar+8mm
Glass Configuration：
Clear
Fluted Glass
Custom Coating Colors
Obscured Glass
Single Panel Silver Low-E
Double Silver Low-E
Ultra Clear
Single Panel Bule Low-E
Hardware:
KINLONG
Doric
Standard Color
Pearl White
2721114G
Monument
2729066M
Black Mall
27219320
Other colors
can be customized
Standard Equipment
Optional Equipment
Screen Mesh
Mesh Size 11 mesh
Wire Diameter 0.8 mm
MAXIMUM PERFORMANCE

Water Tightness :
+300Pa

Ultimate Pressure :
+2.00kPa / -1.50kPa

Air Tightness :
Sealed
+/-150Pa
